Hobbywing Ezrun 1/5 MAX5 HV G2 + 56118SD 800kV G2

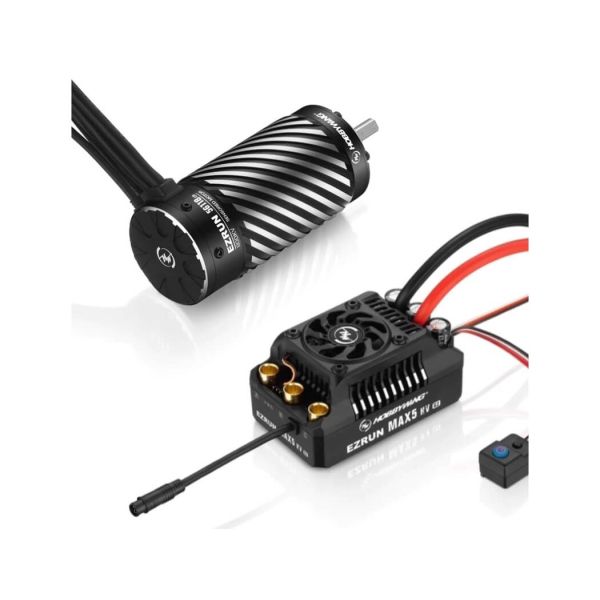

De Hobbywing Ezrun MAX5 Combo SL 56113 800kV Sensorless is geschikt voor 1 op 5 schaal auto's. De set bestaat uit een motor en een regelaar.

Specificaties 56118 SD 800kv motor

• KV: 800KV
• LiPo’s: 8-12S
• No-Load Current: 6.9A
• Diameter / Length: 56mm (2.20″) 30mm (1.18″)
• Shaft Diameter / Length: 8mm (0.31″) 30mm(1.18″)
• Bearing SIze (mm): Front: D22*D8*T7 Rear: D19*D8*T6
• Poles: 4
• Weight: 1277g
• Applications: 1/5th Buggy, Truck

Specificaties Hobbywing Max5 HV regelaar

• Scale: 1/5th
• Brushed/Brushless:BL
• Sensored/Sensorless: SL
• Waterproof: Yes
• Cont./Peak Current: 200A/1300A
• Input: 3-8S LiPo/9-24 Cells NiMH
• BEC Output: Switch Mode: 6V/7.4V,6A
• Input Wires: Red-8AWG-200mm*1/Black-8AWG-200mm*1
• Output Wires: Black-10AWG-200mm*3
• Input Connectors: T Plug/Traxxas Plug
• Output Connecotors: 6.5mm Female Gold Connectors (pre-soldered onto the PCB)
• Fan Size: 45.0×45.0x10.0mm
• Fan Voltage Range: 5-7.4V
• WiFi Module: Supported
• Program Port: FAN/Program Port
• Size: 93.4×58.1×47.8mm
• Weight: 342g
